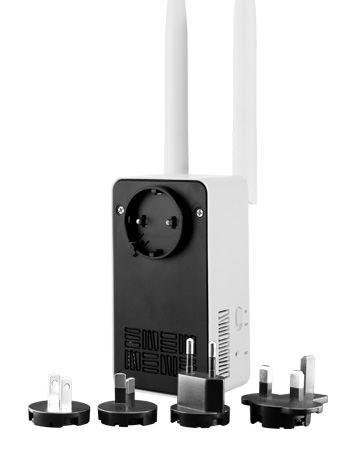

Plug Type

EU, UK, US

Interface

1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port

Power Supply

AC 100V~240V

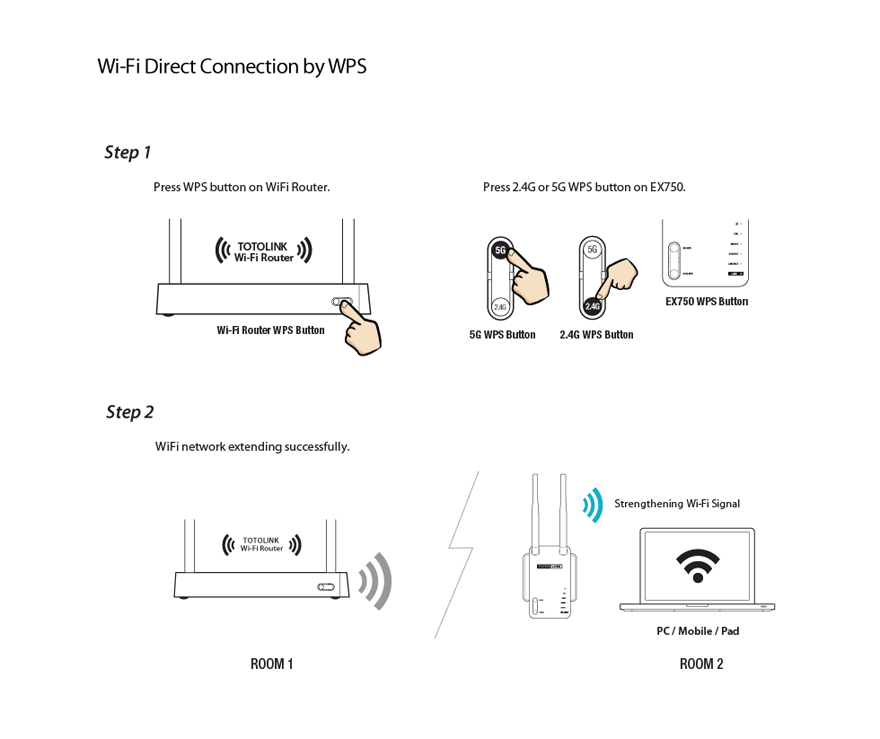

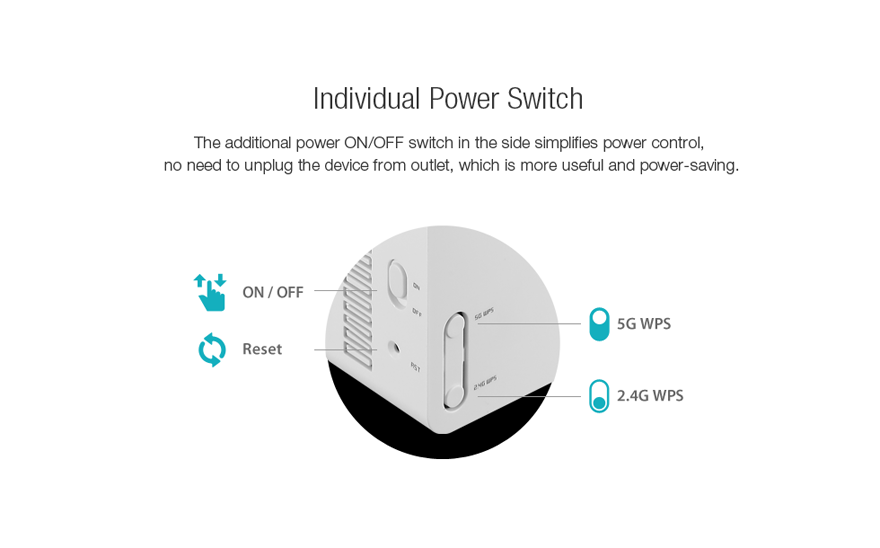

Button

1 *5G WPS , 1*2.4G WPS Button, 1 *Power ON/OFF, 1*RST

LED Indicators

1 *Power, 1 *CPU, 1*LINK/ACT, 1 *5G EXT, 1*2.4G EXT

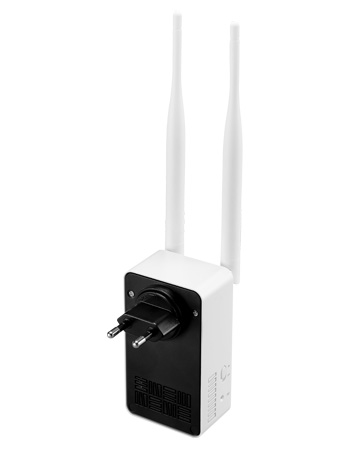

Antenna

2 *5dBi External Antennas

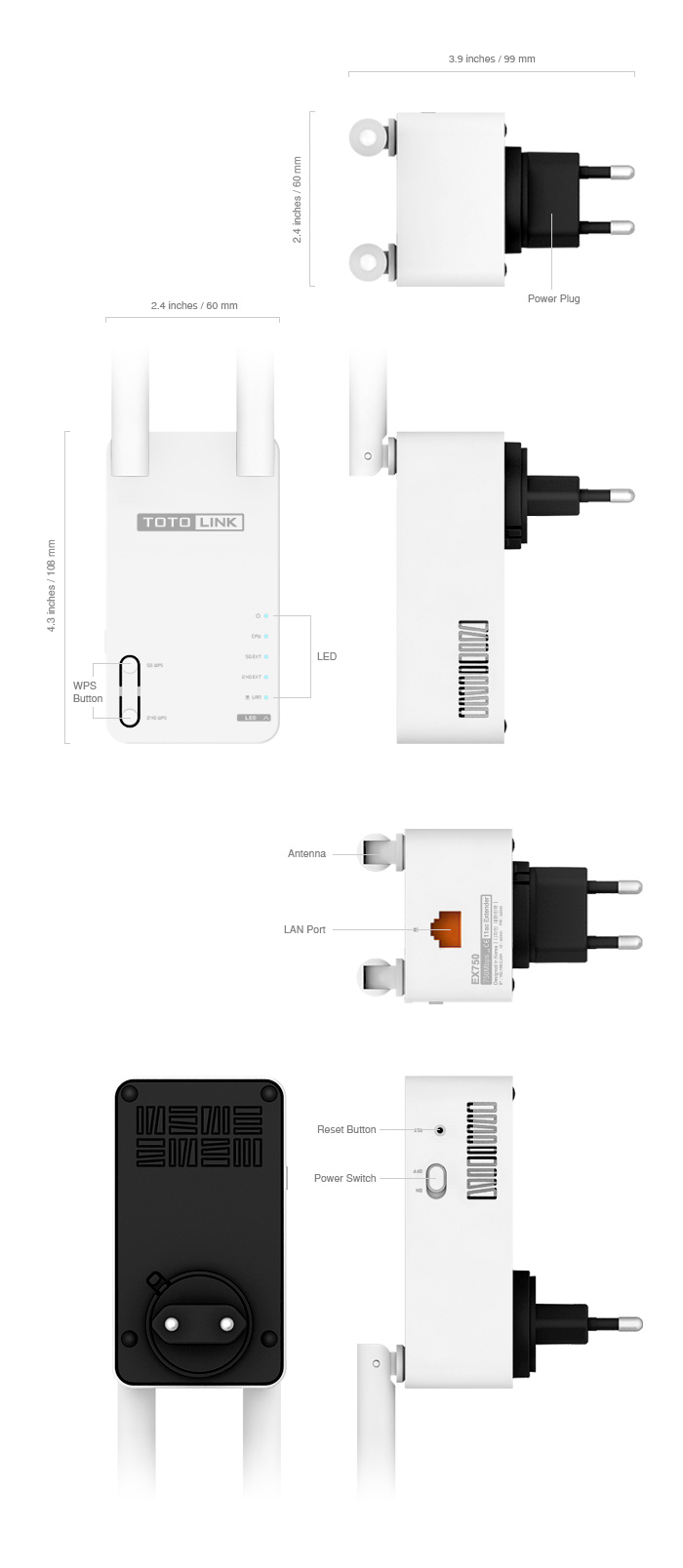

Dimensions (W x D x H)

2.4 x 4.2 x 1.7 in. (60.4 x 107.4 x 43mm)

Standards

IEEE802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

RF Frequency

2GHz/5GHz

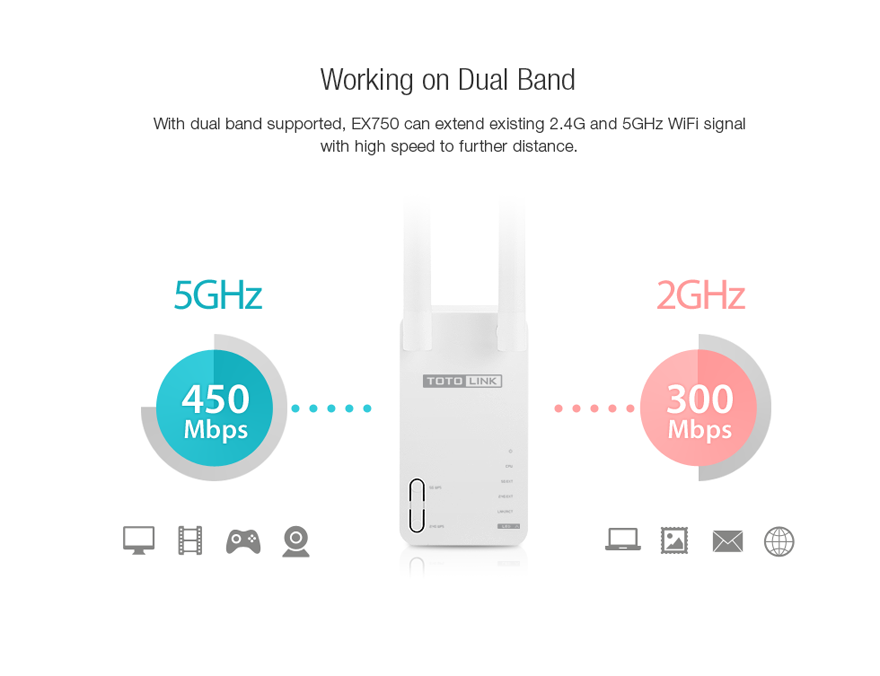

Data Rate

2.4GHz: 300Mbps

5GHz: 433Mbps

EIRP

2.4GHz < 20dBm

5GHz < 23dBm

Reception Sensitivity

2.4G: 11b:<-79dbm?11g?<-68dbm?11n:HT20<-65dbm HT40?<-61dbm

5G: 11a:<-68dbm?11ac: HT20<-65dbm HT40?<-61dbm HT80?<-51dbm

Others

-

Package Contents

EX750 Wireless Extender *1

Ethernet Cable *1

Quick Installation Guide *1

Environment

Operating Temperature: 0?~40 ? (32 ?~104?)

Storage Temperature: -40?~70 ? (-40 ?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
