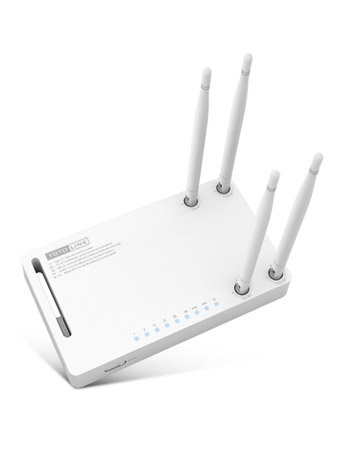

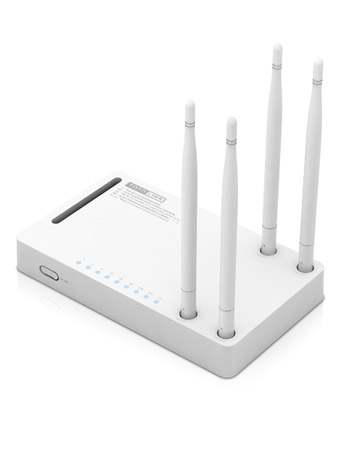

N600RD

N600RD

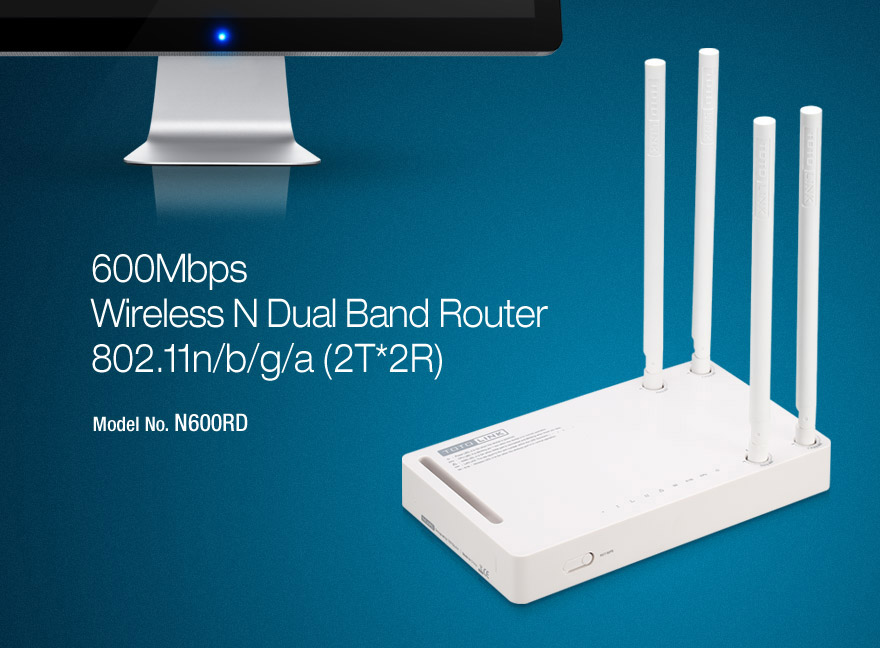

600Mbps Wireless N Dual Band маршрутизатор

- 300Mbps(2.4G)+300Mbps(5G)

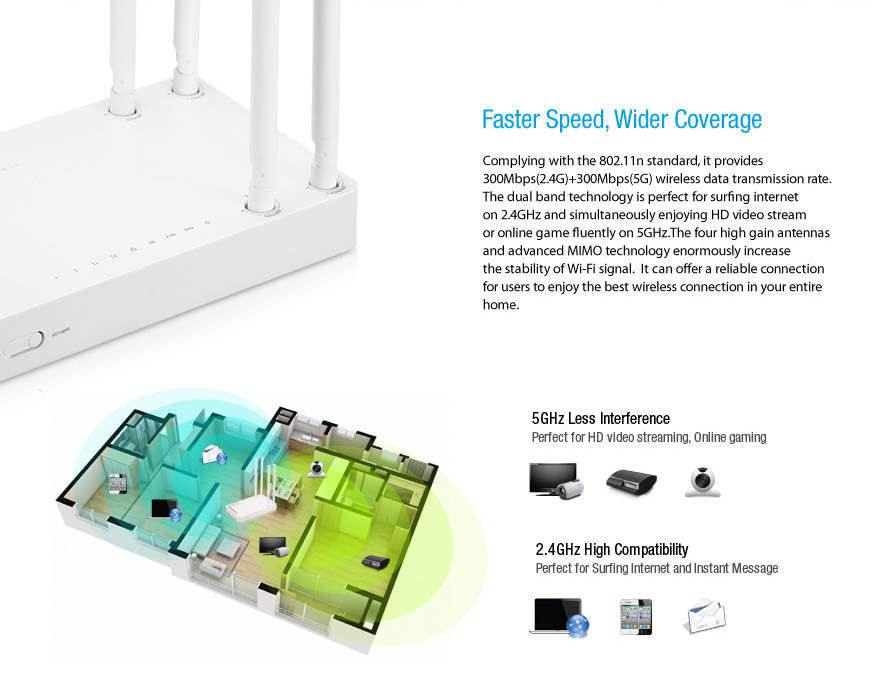

- По-висока скорост, по-широко покритие
- Едновременен Dual Band

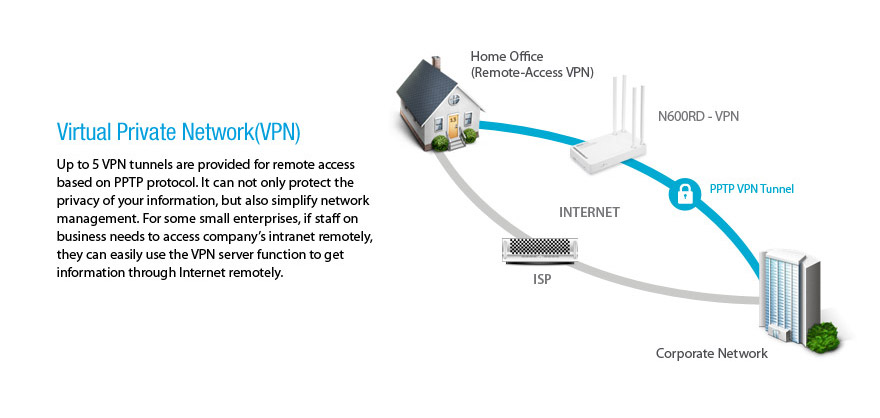

- Виртуална частна мрежа (VPN)

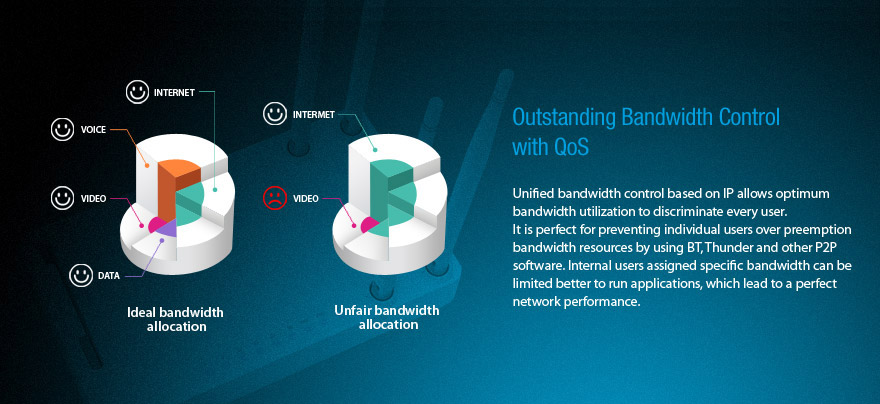

- Изключителен широколентов контрол с QoS

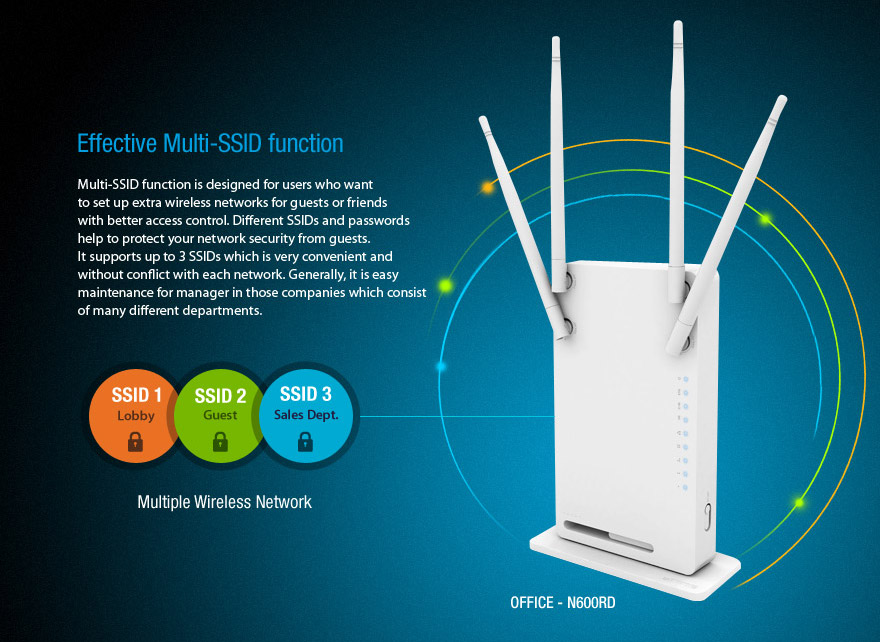

- Ефективна Multi-SSID функция
- Изключителна защита

N600RD N600RD N600RD N600RD N600RD N600RD N600RD N600RD

  • Double your network bandwidth (IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/n 5 GHz).
  • - Up to 300Mbps data rate for Wi-Fi network.
  • - Advanced MIMO technology enhances the throughput and stability.
  • - Four high gain antennas ensure the stability of wireless signal.
  • - Supports PPPoE, DHCP and Static IP broadband functions.
  • - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
  • - Connects to secure network easily and fast using WPS.
  • - Repeater function expands the wireless coverage and allows more terminals to access Internet.
  • - Multi-SSID allows user to create multiple LANs according to their needs.
  • - The IP, MAC and URL filtering makes access and time control more flexibly.
  • - The VPN server can not only protect the privacy of your information, but also simplify network management.

N600RD

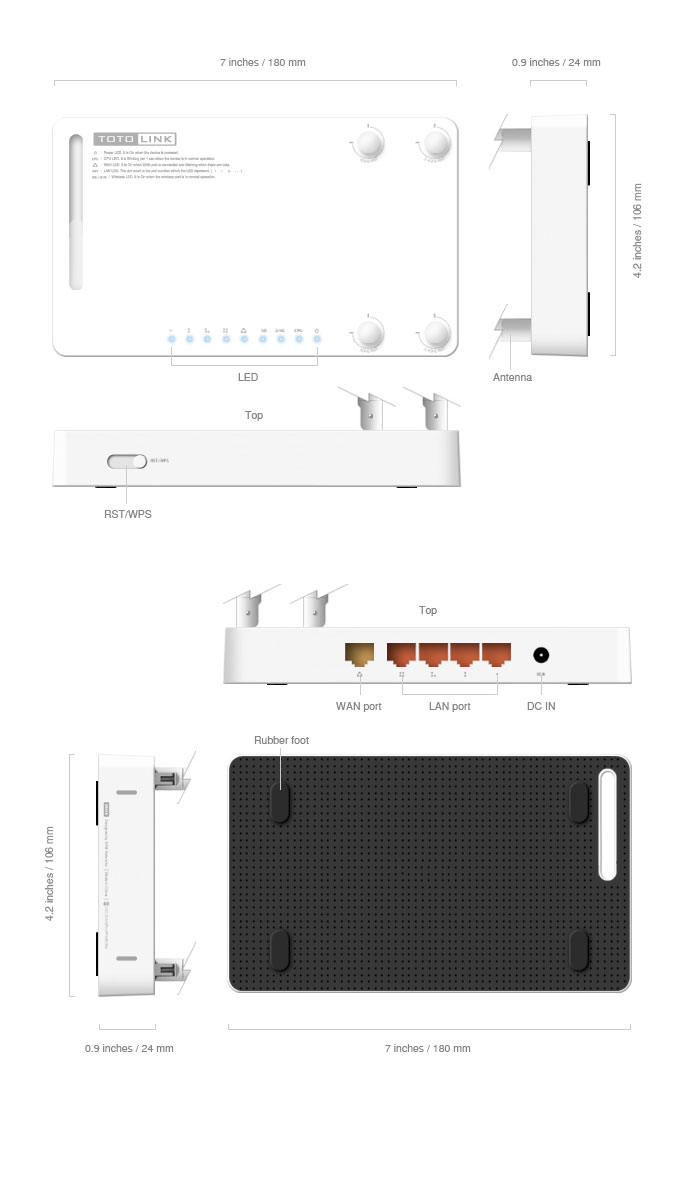

HARDWARE FEATURES

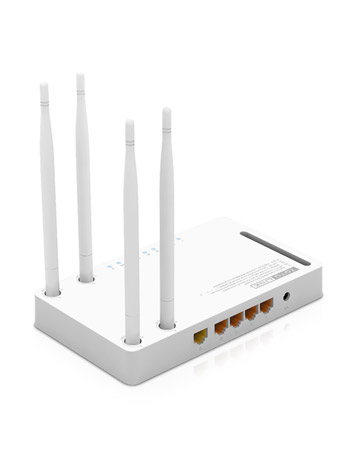

Interface

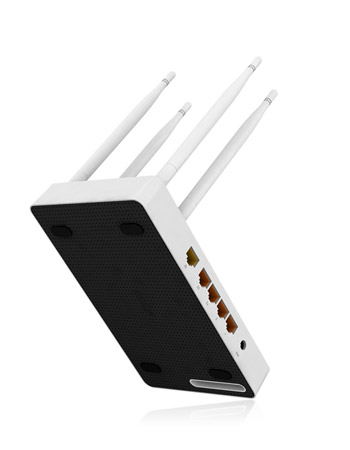

4 *10/100Mbps LAN Ports



1 *10/100Mbps WAN Port

Power Supply

9V DC/0.8A

Button

RST/WPS Button

LED Indicators

1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN

Antenna

4 *4dBi Fixed Antennas

Environment

Operating Temperature: 0?~55? (32?~131?)



Storage Temperature: -20~65? (-4?~149?)



Operating Humidity: 10%~90% non-condensing



Storage Humidity: 5%~95% non-condensing



WIRELESS FEATURES

Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

RF Frequency

2.4GHz/5GHz

Data Rate

2.4G: Up to 300Mbps



5G: Up to 300Mbps

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

EIRP

< 20dBm

Channels

2.4GHz: 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)



5GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165

Modulation Type

DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity

270M: -61 dBm@10% PER



135M: -65 dBm@10% PER



54M: -68 dBm@10% PER



11M: -85 dBm@8% PER



6M: -88 dBm@10% PER



1M: -90 dBm@8% PER



SOFTWARE FEATURES

Network

Internet Setup: PPPoE/DHCP/Static IP



LAN/DHCP Setup: DHCP Server/DHCP Static Lease

Wireless

Wireless Basic Setup



Multiple BSS



Multibridge (Repeater): Wireless Bridge/Wireless WAN



MAC Authentication



WDS



WPS



Advanced Setup

NAT/Routing

Port Forwarding



DMZ/Twin IP



Port Trigger



Routing Table

Firewall

Internet Access Control: IP/MAC Address filtering



Net Detector



Remote/Internal access list

Utility

VPN Setup



DDNS



WOL



Host Scan

Traffic

QoS Setup



Connection Control



Wired Port Setup

Management

System Log



Administrator Setup



Firmware Upgrade



System Time



Configuration backup/restore

Цялото съдържание на този сайт е приложимо само за модели, които се продават в пазари, извън континенталната част на Китай, Тайван и Южна Корея. Който и да е модел, закупен от континенталната част на Китай, Тайван и Южна Корея, може да бъде повреден при обновяване на софтуера от този сайт и не влиза в гаранционното обслужване на продукта.

Firmware

ModelDownloadVersionUpdated
N600RDN600R_V5.3c.5507.rar V5.3c.55072018-04-19
N600RDN600R_V5.3c.2043_B20160813_EN.zip V5.3c.20432017-06-19
N600RDTOTOLINK N600RD_en_8_64.zip en_8_642014-03-26

Datasheet

ModelDownloadVersionUpdated
N600RDN600RD_datasheet_v1.pdf Ver1.02016-06-14

Manual

ModelDownloadVersionUpdated
N600RDN600RD User Manual.pdf Ver1.02014-02-26

Quick Install Guide

ModelDownloadVersionUpdated
N600RDN600RD QIG V1.1.pdf Ver1.12014-02-26


ModelDownloadVersionUpdated
N600RDN600RD_Photo02.jpg 1200x12002014-03-18
N600RDN600RD_Photo01.jpg 1200x12002014-03-18

2. What is the advantage of USB3.0 ?

It is suitable for:  A2000UA, A3004NS

 USB3.0 is the upgraded version of USB2.0 to accelerate data transmitting rate with low power consumption.
It adds more practical function base on USB2.0 such as better power management and is backwards compatible with USB2.0.

Comparison of USB3.0 and USB2.0 :





 USB3.0

 USB2.0

  Data Transmission Rate

 Super Speed (5Gbps)
 High Speed (480Mbps)
 Full Speed (12Mbps)
 Low Speed (1.5Mbps)

 High Speed (480Mbps)
 Full Speed (12Mbps)
 Low Speed (1.5Mbps)

 Duplex

 Full duplex

 Half duplex

 Cable Signal Count

 Six: Four for super-speed data path
 Two for non-super-speed data path

 Two: Two for low-speed /full-

 speed /high-speed data path

 Power Management

 Multi-level link power management

 supporting idle, sleep and suspend states.

 Port-level suspend with two levels

 of entry/exit latency.
