N500RDG

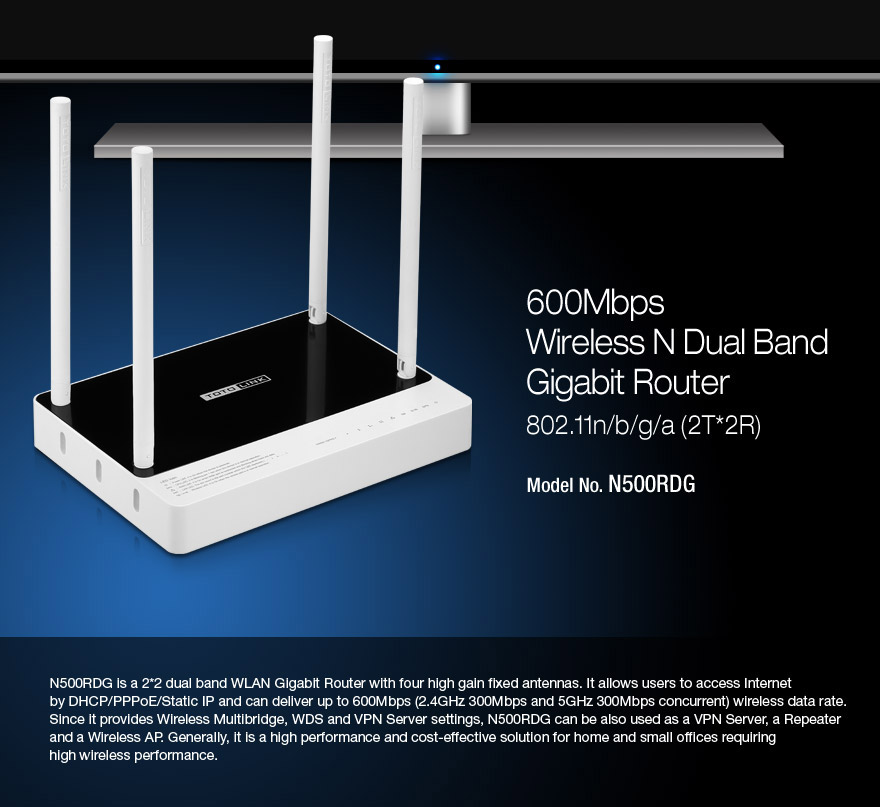

600Mbps Wireless N Dual Band Gigabit маршрутизатор

- 300Mbps(2.4G)+300Mbps(5G)
- Отлично представяне на безжичната мрежа

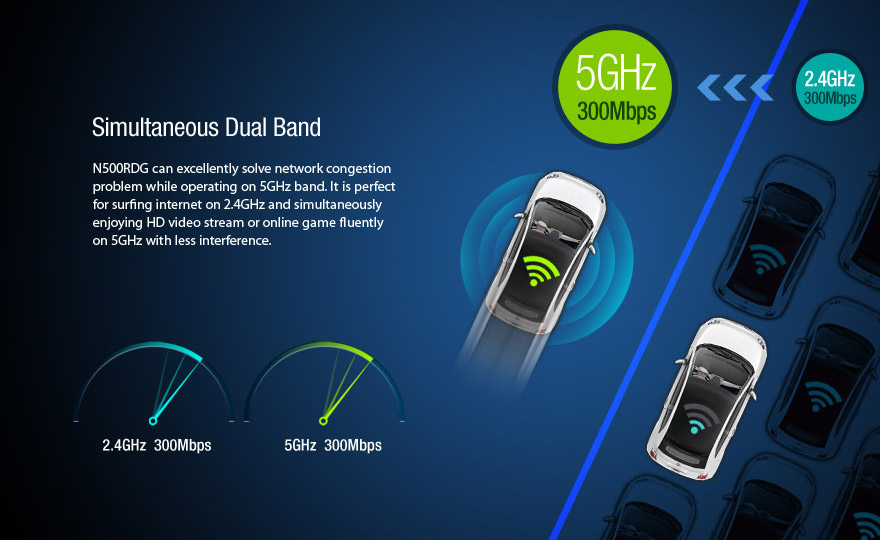

- Едновременен Dual Band
- Гигабитова скорост на жично предаване на данните
- Виртуална частна мрежа (VPN)
- ЕфективнаMulti-SSID функция
- Изключителен широколентов контрол с интелигентен QoS
- Изключителна сигурност

N500RDG N500RDG N500RDG N500RDG N500RDG N500RDG N500RDG N500RDG

Double your network bandwidth (IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/n 5 GHz).
- Up to 600Mbps data rate for Wi-Fi network while 2.4G and 5G work concurrently.

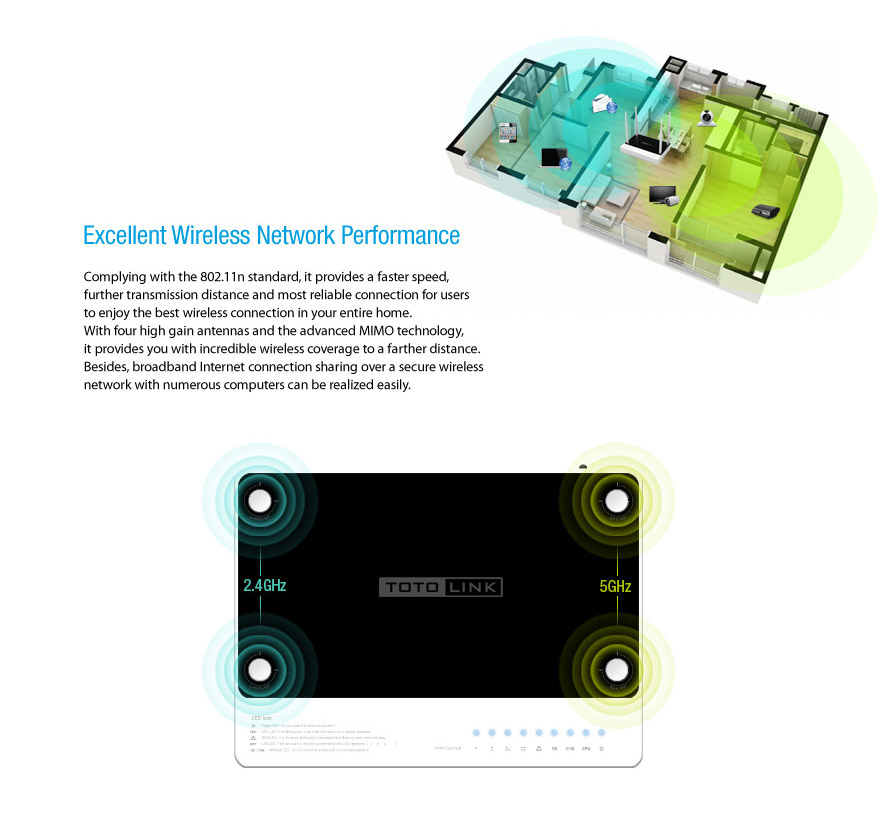

- Advanced MIMO technology enhances the throughput and wireless coverage.
- 5GHz band is optimized for HD video streaming

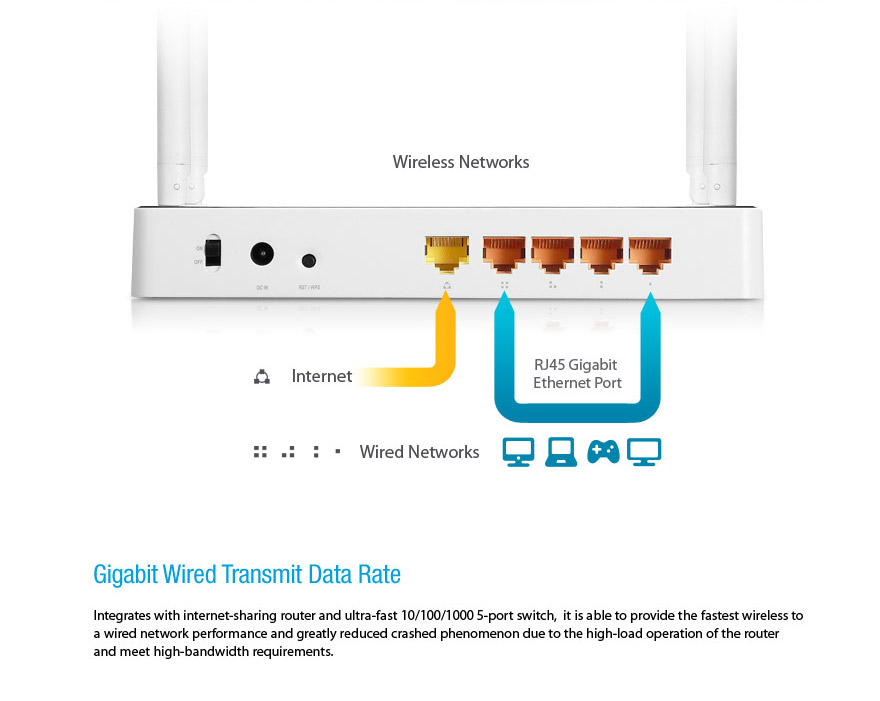

- 5*gigabit Ethernet ports can achieve the most efficient transmission speed.
- Supports PPPoE, DHCP and Static IP broadband functions.

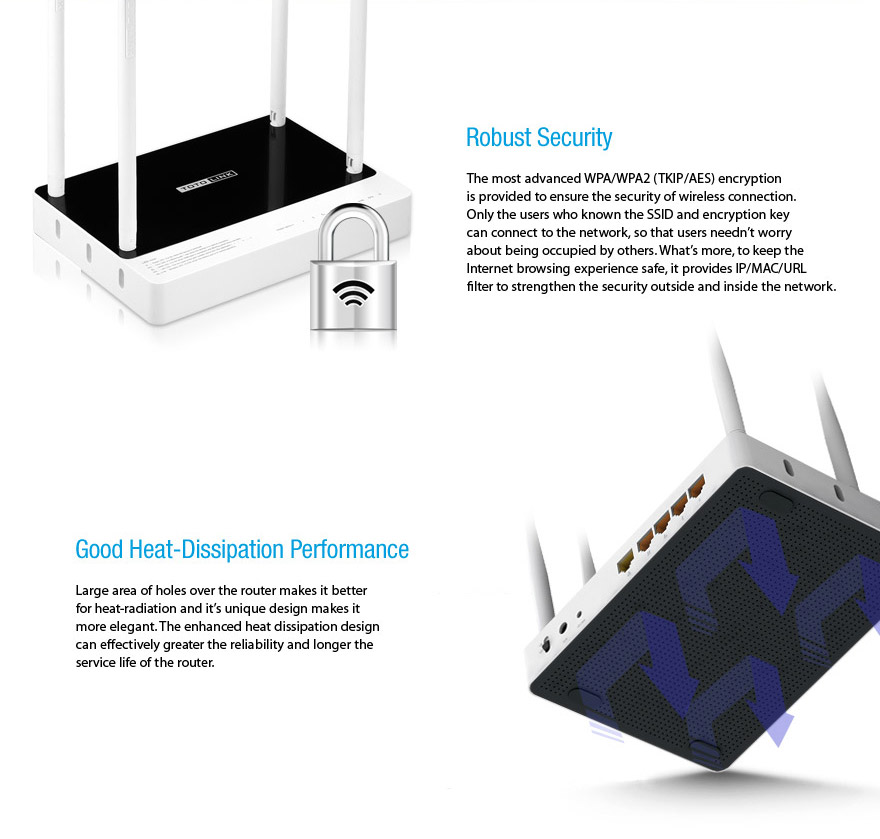

- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security
- Connects to secure network easily and fast using WPS.

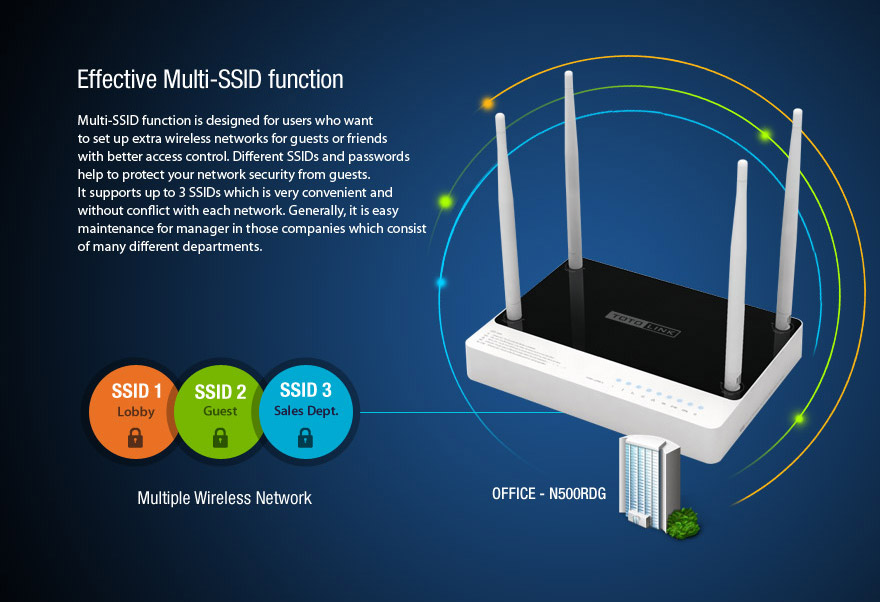

- Multi-SSID allows user to create multiple LANs according to their needs.
- The IP, MAC and URL filtering makes access and time control more flexibly.

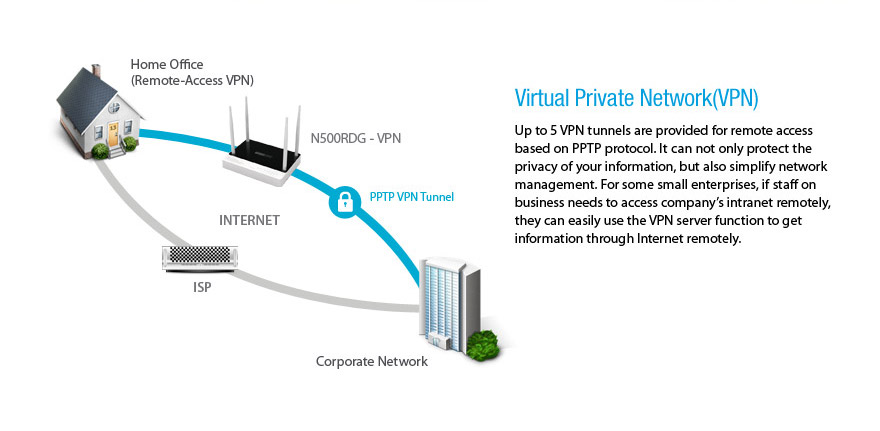

- The VPN server can not only protect the privacy of your information, but also simplify network management.

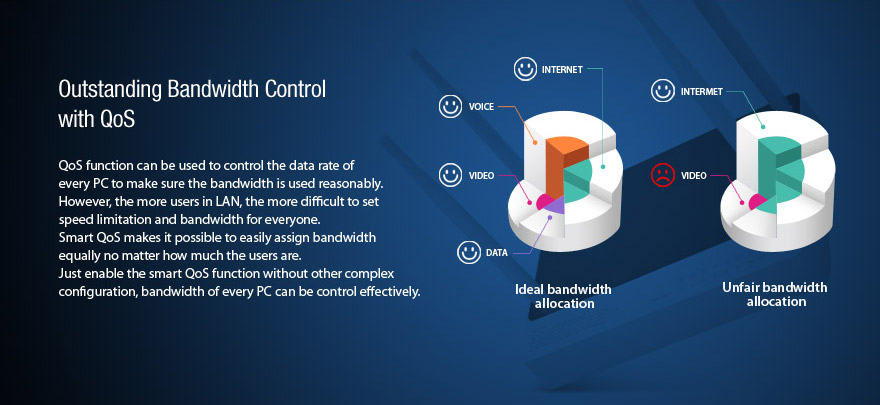

- Smart QoS function can assign bandwidth to PCs equally by one click.
- Repeater function expands the wireless coverage and allows more terminals to access Internet.

N500RDG

HARDWARE FEATURES

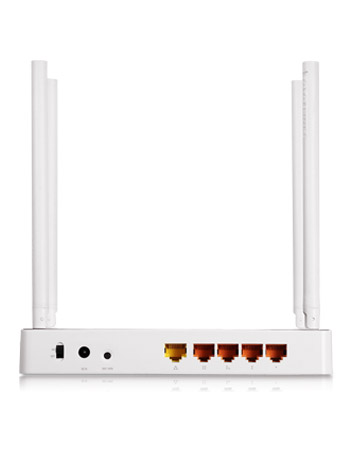

Interface	4*10/100/1000Mbps LAN Ports
	1*10/100/1000Mbps WAN Port
Power Supply	5V DC/2.5A
Button	1*RST/WPS Button
	1*Power ON/OFF Slide Switch
LED Indicators	1Power, 1CPU, 12.4G Wireless, 15.8G Wireless, 1WAN, 4LAN

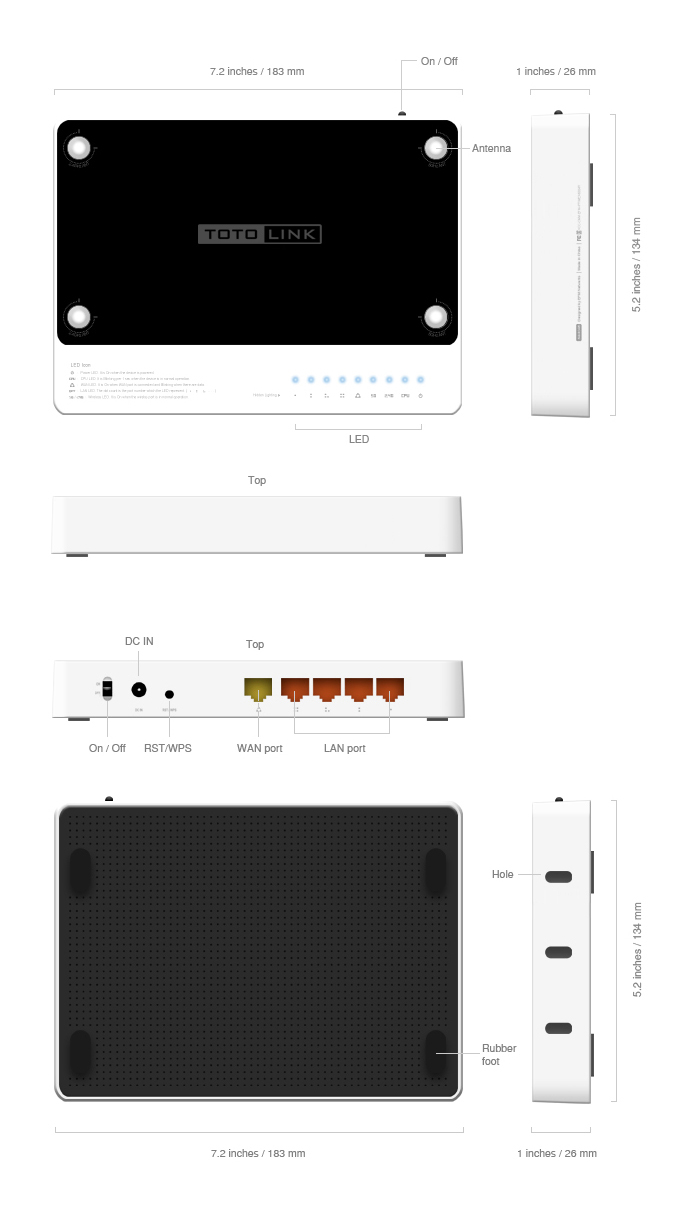

Dimensions	183.4mm x 134.4mm x 26mm (L x W x H)
Antenna	44dBi fixed antennas (22.4GHz, 2*5GHz)
Environment	Operating Temperature: 0?~40? (32?~104?)
	Storage Temperature: -40~70? (-40?~158?)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES
Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
RF Frequency	2.4GHz/5GHz
Data Rate	2.4G: Up to 300Mbps
	5G: Up to 300Mbps
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
EIRP
Modulation Type	DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
Reception Sensitivity	270M: -61 dBm@10% PER
	135M: -65 dBm@10% PER
	54M: -68 dBm@10% PER
	11M: -85 dBm@8% PER
	6M: -88 dBm@10% PER
	1M: -90 dBm@8% PER

SOFTWARE FEATURES
Network	WAN Type: PPPoE/DHCP/Static IP
	LAN Interface
Wireless(2.4GHz/5GHz)	Multiple BSS
	Multibridge(Repeater): Wireless Bridge/Wireless WAN
	MAC Authentication
	WDS
	WPS
NAT/Routing	Port Forwarding
	DMZ/Twin IP
	Port Trigger
	Routing Table
Firewall	Internet Access Control: IP/MAC Address filtering
	Net Detector
	Remote/Internal access list
Utility	VPN Server(5 VPN tunnels)
	DDNS
	WOL
	Host Scan
Traffic	QoS
	Connection Control
	Wired Port Link (speed, duplex)
Management	System Log
	User Name & Password
	Firmware Upgrade
	System Time
	Configuration backup/restore

Цялото съдържание на този сайт е приложимо само за модели, които се продават в пазари, извън континенталната част на Китай, Тайван и Южна Корея. Който и да е модел, закупен от континенталната част на Китай, Тайван и Южна Корея, може да бъде повреден при обновяване на софтуера от този сайт и не влиза в гаранционното обслужване на продукта.

Firmware

Model	Download	Version	Updated
N500RDG	TOTOLINK N500RDG_en_8_42.zip	en_8_42	2014-03-26

Datasheet

Model	Download	Version	Updated
N500RDG	N500RDG_datasheet_v1.pdf	Ver1.0	2014-02-26

Manual

Model	Download	Version	Updated
N500RDG	N500RDG User Manual.pdf	Ver1.0	2014-02-26

Quick Install Guide

Model	Download	Version	Updated
N500RDG	N500RDG QIG V1.1.pdf	Ver1.0	2014-02-26


Model	Download	Version	Updated
N500RDG	N500RDG_Photo02.jpg	1200x1200	2014-02-26
N500RDG	N500RDG_Photo01.jpg	1200x1200	2014-02-26
