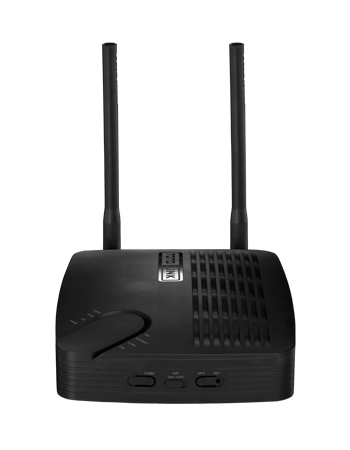

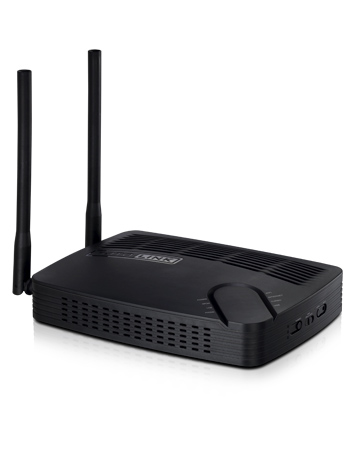

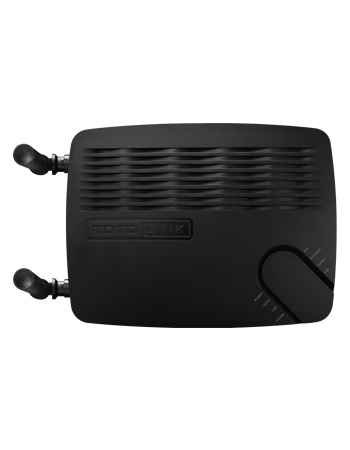

GH4202 is a next generation Gigabit Passive Optical Network(GPON) Integrated Access Device (IAD), designed for Fiber to The Home(FTTH) requirement. It is an incredibly robust all-in-one device allowing you to access high speed Internet via GPON port and share 300Mbps Wi-Fi speed. With one FXS port, users can make VoIP calls easily by connecting the device to existing telephone set.
- Complies with ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4.
- 1*SC/UPC GPON interface, 3*gigabit LAN ports, 1*gigabit port for IPTV, 1*FXS port for VoIP.
- Up to 300Mbps data rate for Wi-Fi network.
- One USB2.0 port for easy file sharing.
- Provides 64/128-bit WEP, WPA / WPA2 and WPAPSK / WPA2PSK security.
- Downstream rate up to 2.5Gbps and upstream rate up to 1.25Gbps.
- Supports GPON adaptive mode to meet different FTTH requirement.
- Supports OMCI (ONT Management Control Interface) remote management
- Supports VoIP calls
- High speed data forwarding
- Supports remote diagnosis to accurate locate error
| HARDWARE FEATURES |
| Interface |
4*10/100/1000Mbps LAN ports |
| |
1 *SC/UPC GPON port |
| |
1 *VoIP port |
| |
1*USB2.0 port |
| Power Supply |
12V DC / 1.5A |
| Button |
1 *Power ON/OFF button |
| |
1 *Wi-Fi ON/OFF button |
| |
1 *Turbo button |
| |
1 *WPS button |
| |
1 *Reset button |
| LED Indicators |
1 *Power, 1 *GPON, 1*Wireless, 1*Phone, 4*LANs, 1*LOS, 1*USB, 1*Turbo, 1*Internet |
| Data Rate |
Upstream: 1.25Gbps |
| |
Downstream: 2.5Gbps |
| GPON Standards |
ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Distance |
Up to 20Km |
| Dimensions (L x W x H) |
7.9 x 5.9 x 1.6 in. (202 x 149.8 x 41.5 mm) |
| Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| RF Frequency |
2.4~2.4835GHz |
| Data Rate |
Up to 300Mbps |
| EIRP |
< 20dBm |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Wireless Functions |
Basic Setting, WDS Bridge, WMM |
| WIRELESS FEATURES |
| Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| RF Frequency |
2.4~2.4835GHz |
| Data Rate |
Up to 300Mbps |
| EIRP |
< 20dBm |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| Wireless Functions |
sic Setting, WDS Bridge, WMM |
